Animations

Implicit animations#

With implicit animations, you can animate a control property by setting a target value; whenever that target value changes, the control animates the property from the old value to the new one.

Animation produces interpolated values between the old and the new value over the given duration.

By default, the animation is linearly increasing the animation value, however, a curve can be applied to the animation which changes the value according to the provided curve. For example, AnimationCurve.EASE_OUT_CUBIC curve increases the animation value quickly at the beginning of the animation and then slows down until the target value is reached:

LayoutControl (and its subclasses) provides a number of animate_{something} properties, described below, to enable implicit animation of its appearance:

  • animate_opacity
  • animate_rotation
  • animate_scale
  • animate_offset
  • animate_position
  • animate (Container)

animate_* properties could have one of the following values:

  • Instance of Animation - allows configuring the duration and the curve of the
  • animation, for example animate_rotation=Animation(duration=300, curve=AnimationCurve.BOUNCE_OUT). See this Flutter docs on animation curves for possible values. Default is linear.
  • int value - enables animation with specified duration in milliseconds and linear curve.
  • bool value - enables animation with the duration of 1000 milliseconds and linear curve.
import flet as ft
from datetime import time


def main(page: ft.Page):
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    def handle_change(e: ft.Event[ft.TimePicker]):
        page.add(ft.Text(f"TimePicker change: {time_picker.value}"))

    def handle_dismissal(e: ft.Event[ft.TimePicker]):
        page.add(ft.Text(f"TimePicker dismissed: {time_picker.value}"))

    def handle_entry_mode_change(e: ft.TimePickerEntryModeChangeEvent):
        page.add(ft.Text(f"TimePicker Entry mode changed to {e.entry_mode}"))

    time_picker = ft.TimePicker(
        value=time(1, 2),
        confirm_text="Confirm",
        error_invalid_text="Time out of range",
        help_text="Pick your time slot",
        on_change=handle_change,
        on_dismiss=handle_dismissal,
        on_entry_mode_change=handle_entry_mode_change,
    )

    page.add(
        ft.Button(
            content="Pick time",
            icon=ft.Icons.TIME_TO_LEAVE,
            on_click=lambda _: page.show_dialog(time_picker),
        )
    )


if __name__ == "__main__":
    ft.run(main)

basic

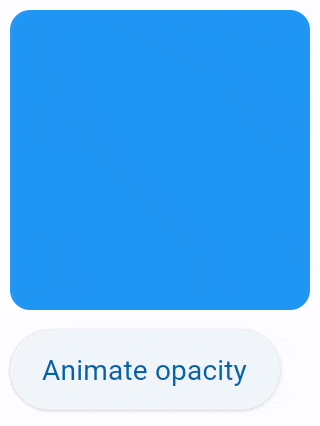

Opacity animation#

Setting control's animate_opacity to either True, number or an instance of Animation class (see above) enables implicit animation of LayoutControl.opacity property.

import flet as ft


def main(page: ft.Page):
    def animate_opacity(e: ft.Event[ft.Button]):
        container.opacity = 0 if container.opacity == 1 else 1
        container.update()

    page.add(
        container := ft.Container(
            width=150,
            height=150,
            bgcolor=ft.Colors.BLUE,
            border_radius=10,
            animate_opacity=300,
        ),
        ft.Button(
            content="Animate opacity",
            on_click=animate_opacity,
        ),
    )


ft.run(main)

animate-opacity

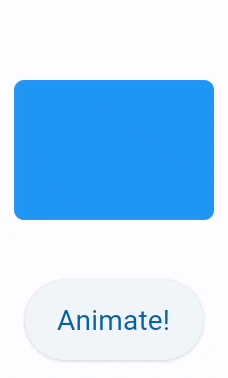

Rotation animation#

Setting control's animate_rotation to either True, number or an instance of Animation class (see above) enables implicit animation of LayoutControl.rotate property.

animate-rotation

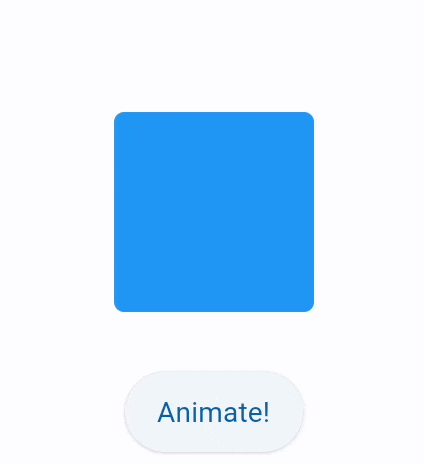

Scale animation#

Setting control's animate_scale to either True, number or an instance of Animation class (see above) enables implicit animation of LayoutControl.scale property.

import flet as ft


def main(page: ft.Page):
    page.vertical_alignment = ft.MainAxisAlignment.CENTER
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER
    page.spacing = 30

    def animate(e: ft.Event[ft.Button]):
        container.scale = 2 if container.scale == 1 else 1
        page.update()

    page.add(
        container := ft.Container(
            width=100,
            height=100,
            bgcolor=ft.Colors.BLUE,
            border_radius=5,
            scale=1,
            animate_scale=ft.Animation(
                duration=600,
                curve=ft.AnimationCurve.BOUNCE_OUT,
            ),
        ),
        ft.Button("Animate!", on_click=animate),
    )


ft.run(main)

animate-scale

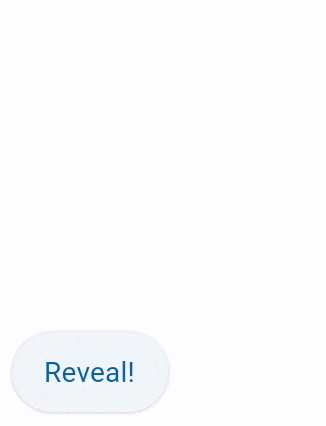

Offset animation#

Setting control's animate_offset to either True, number or an instance of Animation class (see above) enables implicit animation of LayoutControl.offset property.

offset property is an instance of Offset class which specifies horizontal x and vertical y offset of a control scaled to control's size. For example, an offset Offset(-0.25, 0) will result in a horizontal translation of one quarter the width of the control.

Offset animation is used for various sliding effects:

animate-offset

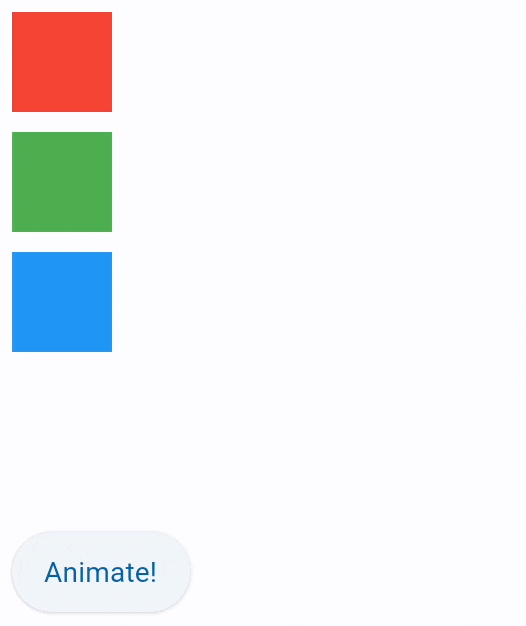

Position animation#

Setting control's animate_position to either True, number or an instance of Animation class (see above) enables implicit animation of the following LayoutControl properties: left, right, bottom, top.

Note: Positioning is effective only if the control is a descendant of one of the following:

- [`Stack`][flet.Stack] control
- [`Page.overlay`][flet.Page.overlay] list

import flet as ft


def main(page: ft.Page):
    def animate_container(e: ft.Event[ft.Button]):
        c1.top = 20
        c1.left = 200
        c2.top = 100
        c2.left = 40
        c3.top = 180
        c3.left = 100
        page.update()

    page.add(
        ft.Stack(
            height=400,
            controls=[
                c1 := ft.Container(
                    width=50, height=50, bgcolor="red", animate_position=1000
                ),
                c2 := ft.Container(
                    width=50,
                    height=50,
                    bgcolor="green",
                    top=60,
                    left=0,
                    animate_position=500,
                ),
                c3 := ft.Container(
                    width=50,
                    height=50,
                    bgcolor="blue",
                    top=120,
                    left=0,
                    animate_position=1000,
                ),
            ],
        ),
        ft.Button("Animate!", on_click=animate_container),
    )


ft.run(main)

animate-position

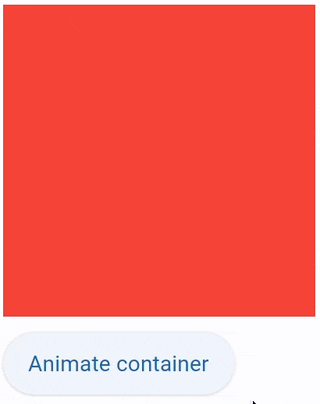

Animate#

Setting Container.animate to AnimationValue enables implicit animation of container properties such as size, background color, border style, gradient.

animate

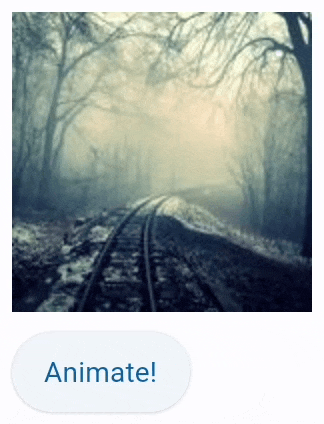

Animated content switcher#

AnimatedSwitcher allows animated transition between a new control and the control previously set on the AnimatedSwitcher as a content.

import time

import flet as ft

def main(page: ft.Page):
    i = ft.Image(src="https://picsum.photos/150/150", width=150, height=150)

    def animate(e):
        sw.content = ft.Image(
            src=f"https://picsum.photos/150/150?{time.time()}", width=150, height=150
        )
        page.update()

    sw = ft.AnimatedSwitcher(
        i,
        transition=ft.AnimatedSwitcherTransition.SCALE,
        duration=500,
        reverse_duration=500,
        switch_in_curve=ft.AnimationCurve.BOUNCE_OUT,
        switch_out_curve=ft.AnimationCurve.BOUNCE_IN,
    )

    page.add(
        sw,
        ft.Button("Animate!", on_click=animate),
    )

ft.run(main)

animated-switcher

Animation end callback#

LayoutControl also has an on_animation_end event handler, which is called when an animation is complete. It can be used to chain multiple animations.

Event's data field/property contains the name of animation:

  • "opacity"
  • "rotation"
  • "scale"
  • "offset"
  • "position"
  • "container"

For example:

ft.Container(
    content=ft.Text("Animate me!"),
    animate=ft.Animation(1000, ft.AnimationCurve.BOUNCE_OUT),
    on_animation_end=lambda e: print("Container animation end:", e.data)
)
