Stack

Positions its children on top of each other, following a LIFO (Last In First Out) order.

This control is useful if you want to overlap several children in a simple way. For example having some text and an image, overlaid with a gradient and a button attached to the bottom.

Stack is also useful if you want to implement implicit animations (https://flet.dev/docs/guides/python/animations/) that require knowing absolute position of a target value.

ft.Stack(
        width=300,
        height=300,
        controls=[
            ft.Image(
                src="https://picsum.photos/300/300",
                width=300,
                height=300,
                fit=ft.BoxFit.CONTAIN,
            ),
            ft.Row(
                alignment=ft.MainAxisAlignment.CENTER,
                controls=[
                    ft.Text(
                        value="Image title",
                        color=ft.Colors.SURFACE_TINT,
                        size=40,
                        weight=ft.FontWeight.BOLD,
                        opacity=0.5,
                    )
                ],
            ),
        ],
    )

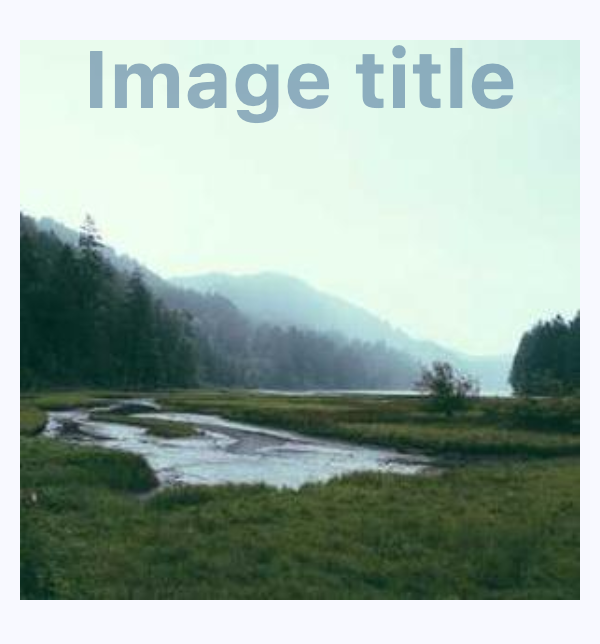

Basic stack with text over image

Inherits: LayoutControl, AdaptiveControl

Properties

• alignment(Alignment | None) –

  Specifies the alignment for non-positioned (those without explicit

• clip_behavior(ClipBehavior) –

  The content will be clipped (or not) according to this option.

• controls(list[Control]) –

  A list of Controls to display.

• fit(StackFit) –

  How to size the non-positioned controls.

Examples

Live example

Avatar with online status

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Stack(
            width=40,
            height=40,
            controls=[
                ft.CircleAvatar(
                    foreground_image_src="https://avatars.githubusercontent.com/u/5041459?s=88&v=4"
                ),
                ft.Container(
                    content=ft.CircleAvatar(bgcolor=ft.Colors.GREEN, radius=5),
                    alignment=ft.Alignment.BOTTOM_LEFT,
                ),
            ],
        )
    )


if __name__ == "__main__":
    ft.run(main)

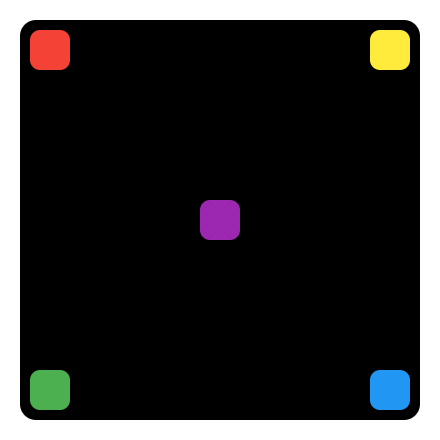

Absolute positioning

import flet as ft


def main(page: ft.Page):
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER
    page.vertical_alignment = ft.MainAxisAlignment.CENTER

    page.add(
        ft.Container(
            border_radius=8,
            padding=5,
            width=200,
            height=200,
            bgcolor=ft.Colors.BLACK,
            content=ft.Stack(
                controls=[
                    ft.Container(
                        width=20,
                        height=20,
                        bgcolor=ft.Colors.RED,
                        border_radius=5,
                    ),
                    ft.Container(
                        width=20,
                        height=20,
                        bgcolor=ft.Colors.YELLOW,
                        border_radius=5,
                        right=0,
                    ),
                    ft.Container(
                        width=20,
                        height=20,
                        bgcolor=ft.Colors.BLUE,
                        border_radius=5,
                        right=0,
                        bottom=0,
                    ),
                    ft.Container(
                        width=20,
                        height=20,
                        bgcolor=ft.Colors.GREEN,
                        border_radius=5,
                        left=0,
                        bottom=0,
                    ),
                    ft.Column(
                        left=85,
                        top=85,
                        controls=[
                            ft.Container(
                                width=20,
                                height=20,
                                bgcolor=ft.Colors.PURPLE,
                                border_radius=5,
                            )
                        ],
                    ),
                ]
            ),
        )
    )


if __name__ == "__main__":
    ft.run(main)

Properties

alignment

alignment: Alignment | None = None

Specifies the alignment for non-positioned (those without explicit alignment properties such as top or bottom) and partially-positioned controls.

clip_behavior

clip_behavior: ClipBehavior = HARD_EDGE

The content will be clipped (or not) according to this option.

controls

controls: list[Control] = field(default_factory=list)

A list of Controls to display.

For the display order, it follows the order of the list, so the last control in the list will be displayed on top (LIFO - Last In First Out).

fit

fit: StackFit = LOOSE

How to size the non-positioned controls.
